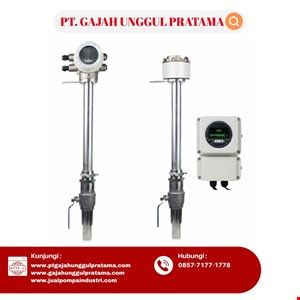

Electromagnetic Flow Meter Insertion SHM company.name }} /> Terlengkap
Electromagnetic Flow Meter Insertion SHM Specifications:
- Size: DN 10-2000
- Material: Body SS304, Head Epoxy Coated Aluminum
- Temperature: Integrated 0-100c/ Separated 0-120c
- Pressure: 16 Bar
- Power Supply: 220 VAC/ 24 VDC
- Output: Pulse, 4 - 20 mA HARTS, RS 485 (Modbus)
- Protection Grade: IP 65 Head/ IP 68 Body
- Connection: Insertion
- Accuracy: +/- 0.5%
- Measurement Range: 0.1 - 15 m/s
- Repeatability: -
- Explosion Proof: Exd IIBT4
- ISO 9001 & ISO 4064
- Warranty 2 Years (Full Services & Spare Parts)
- Electrode Material: SS 316/ Tungsten Carbide/ Hastelloy B/ Hastelloy C/ Titanium/ Tantalum/ Platinum Iridium
Lining Material: Polytetrafluoroethylene (PTFE)/ PFA/ F46/ Neoprene/ Polyurethane
Applications of Electromagnetic Flow Meter Insertion SHM:
- Conductive Water
- Not Applicable for RO, Demin, or Filtered Water
