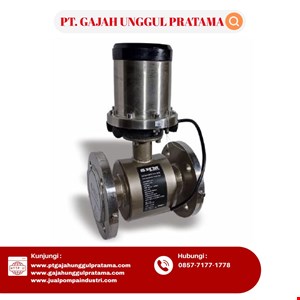

SHM ELECTROMAGNETIC FLOWMETER INTEGRATED BATTERY company.name }} /> Terlengkap
SHM electromagnetic flow meters (battery-powered versions) typically use a 3.6V power supply. This is usually a specialized high-capacity lithium battery pack designed for industrial use.
SPECIFICATIONS
Size: DN 10 - 300
Material: Epoxy-coated Body, Cast Iron, Epoxy-coated Aluminum Head, SS304 Flange
Temperature: 0 - 100°C
Pressure: 16 Bar/ (Optional 40 bar)
Power Supply: 3.6V Battery
Output: Pulse, 4 - 20 mA HARTS, RS 485 (Modbus)
Protection Level: IP 65
Connection: PN16/PN 40/ANSI 150 Flange
Accuracy: +/- 0.5%
Measuring Range: 0.1 - 15 m/s
Repeatability: -
Explosion-proof: Exd IIBT4
ISO 9001 & ISO 4064
2-Year Warranty (Full Service & Spare Parts)
Electrode Material: SS 316/ Tungsten Carbide/ Hastelloy B/ Hastelloy C/ Titanium/ Tantalum/ Platinum Iridium
Coating Material: Polytetrafluoroethylene (PTFE)/ PFA/ F46/ Neoprene/ Polyurethane
APPLICATION
Conductive Water
Not Applicable for RO, Demin, or Filtered Water
