SHM Ultrasonic Handheld Flow Meter Distributor

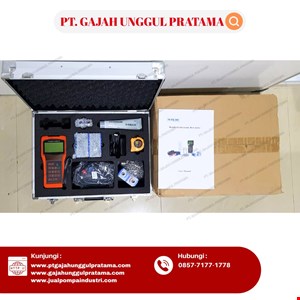

The SHM Ultrasonic Handheld Flow Meter is a portable device designed to measure the flow velocity, rate, and accumulation of various fluids without damaging the pipe. It is commonly used for, but not limited to, water, wastewater, and seawater, with high accuracy (approximately ±1%) and the ability to handle temperatures up to 90°C.
SPECIFICATION
Material: Transmitter made of ABS plastic, Transducer made of ABS plastic
Temperature: 0-90°C
Power Supply: 3.6V Battery
Output: RS232
Protection Grade: IP65
Accuracy: +/- 1%
Velocity Range: 32 m/s
Repeatability: > 0.2%
ISO 9001 & ISO 4064
2-Year Warranty (Full Service & Spare Parts)
APPLICATION
Water, Seawater, Sawage, Kerosene, Gasoline, Fuel Oil, Crude Oil, Propane at -45°C, Butane at 0°C, Diesel Oil, Caster Oil, Peanut Oil, Alcohol, and Other Liquids.
Key Features
-Non-Invasive Measurement: This device uses a clamp-on transducer that is mounted on the outside of the pipe, requiring no pipe modifications.
-Portability: Powered by a rechargeable battery, making it ideal for field use and inspections at various locations.
-Application Flexibility: Suitable for a wide range of pipe diameters, with transducer options covering the DN15 to DN6000 range.
-Data Collection: Some models, such as the SHM Ultrasonic Flowmeter 6000H, feature data logging capabilities for further analysis.
-LCD Display: Equipped with an LCD screen to display real-time flow data, including flow rate and total volume.
-Accuracy: Has a high level of accuracy, with a claimed accuracy of ±1%.
